Low voltage irrigation system control cable

FOB Reference Price:Get Latest Price
$0.50 - $5.00 / Meters | 1000 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
ANYTE
Model Number:
18 AWG 7 Conductor Irrigation Cable
Insulation Material:
PVC
Type:
Low Voltage
Application:
Underground
Conductor Material:
Copper, CU
Jacket:
PVC
COLOR:
GRAY
Supply Ability
Supply Ability:
3000 Kilometer/Kilometers per Week
Packaging & Delivery
Packaging Details
Rool ,reel or as your requirement
Port
SHANGHAI

18 AWG 7 Conductor Irrigation Cable

Application

This type of irrigation cable can be used in Golf Course Sprinkler Systems,Cultivators,field and underground irrigation system, sprinkler system, underground sprinkler system.These cables are intended for direct burial, for satellite solenoid control on golf courses and lawns, terminated to Listed Type UF or USE Cable.

Construction

Conductors - No. 18 AWG, Solid bare copper.

Insulation - Class 30 HDPE; min average thickness 0.44mm, min thickness at any point 0.4mm.

Assembly - Seven conductors cabled together.  The length of lay is not specified. Seven cores colour:  Red, White, Yellow, Brown, Black, Blue, Green
Rip Cord -include a rip cord placed parallel to the conductors under the overall jacket for the  purpose of stripping the jacket by the end-user.

Jacket – SR PVC; min average thickness of 0.635mm, min thickness at any point0.6mm.

Jacket colour: Brown

18 AWG 7 Conductor Irrigation Cable Technical data

Rated temperature: 60° C

Operating voltage: 30 V

Properties

Meet with UL83 standard
Use environmentally friendly materials, comply with ROHS directive
Wiring cable, which meets UL - CSA of the United States and Canada standards , so that the cable can be used in the North American market at the same time.

Conductor: Solid Copper

Number of Conductors: 8 AWG: 18

Insulation: Black PVC



Certificate

Package

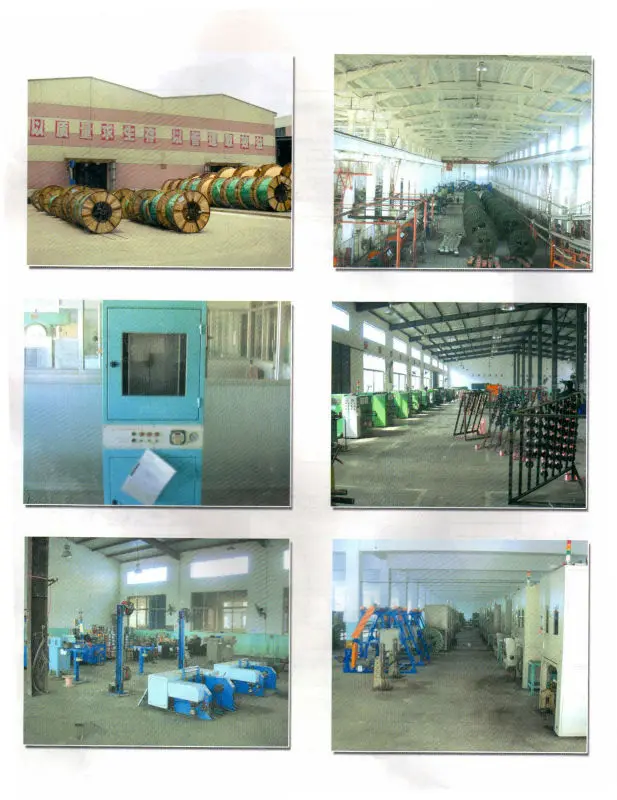

Our factory
